5-in-1 84In Double Barn Door with Single Track Bypass Installation Hardware Kit
Package includes all the barn door and barn door hardware kit you need to install a sliding barn door. The barn door hardware kit can be used inside only. This door requires two people to assemble, it is not a traditional one-piece barn door. Pilot holes on the door are all pre-drilled and cut. Wooden panel is able to junction with each other for a tight fit. It is an unfinished barn door, you can easily paint it as you wish. Please leave the door dry for at least 24 hours. The barn door will work perfectly with our sliding barn door hardware kit and door handles. The bottom of the door had a pre-cut groove to fit with the floor guide that prevents the door from swinging back and forth.
- Package includes all the pieces you need to install a wood barn door and the necessary barn door hardware kit.
- The barn door comes unassembled, you will need to put them together.
- The barn door comes unfinished, you can paint any colors on it.

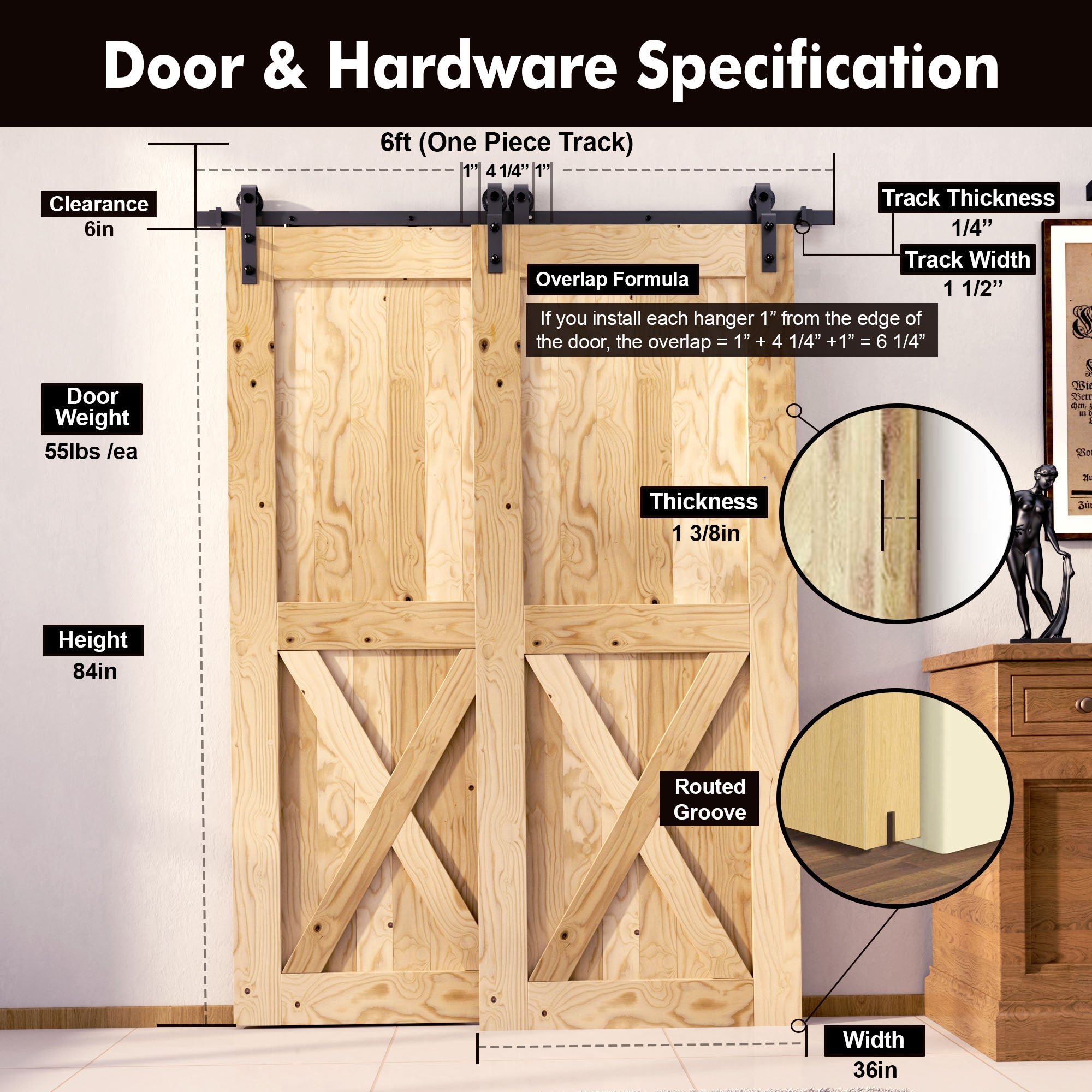

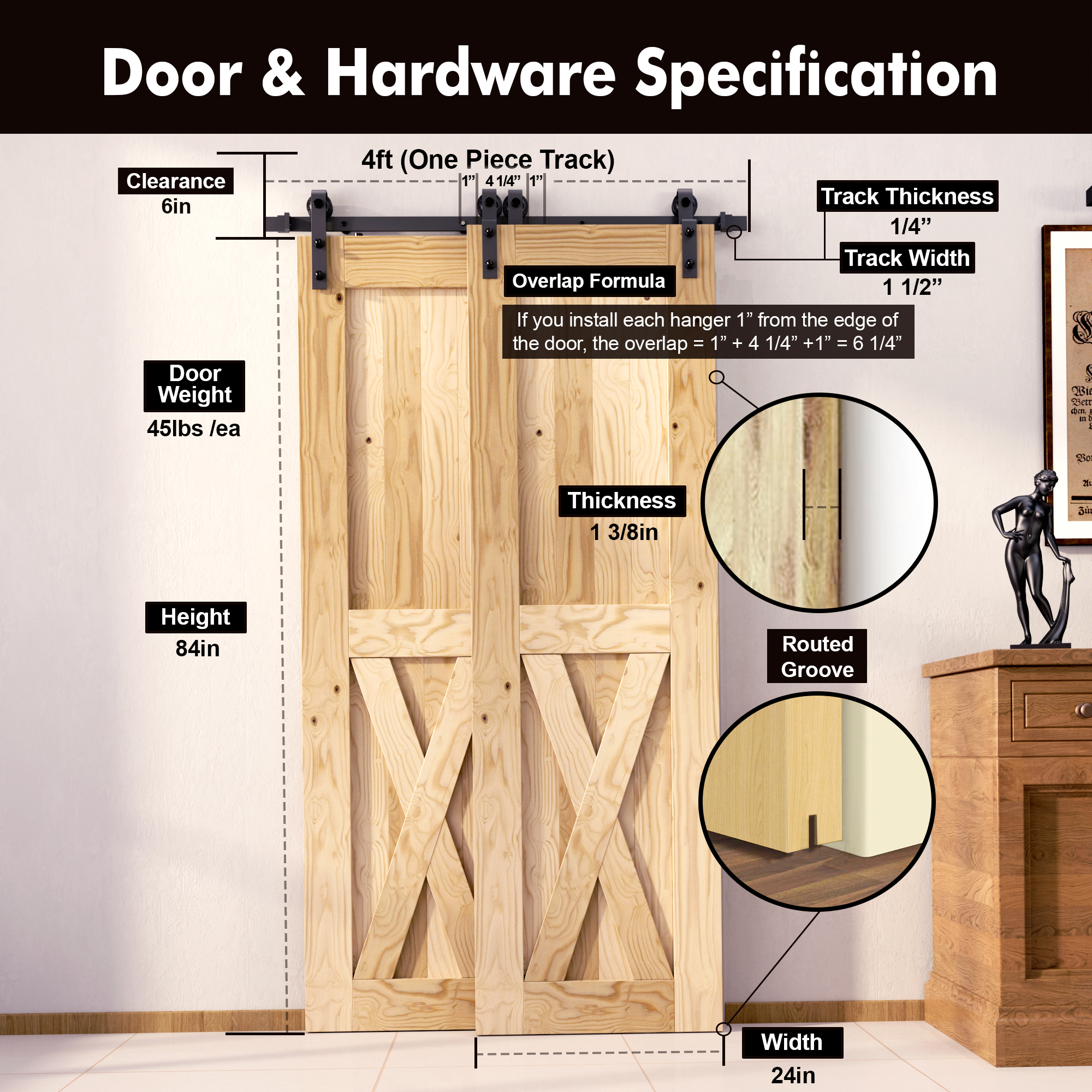

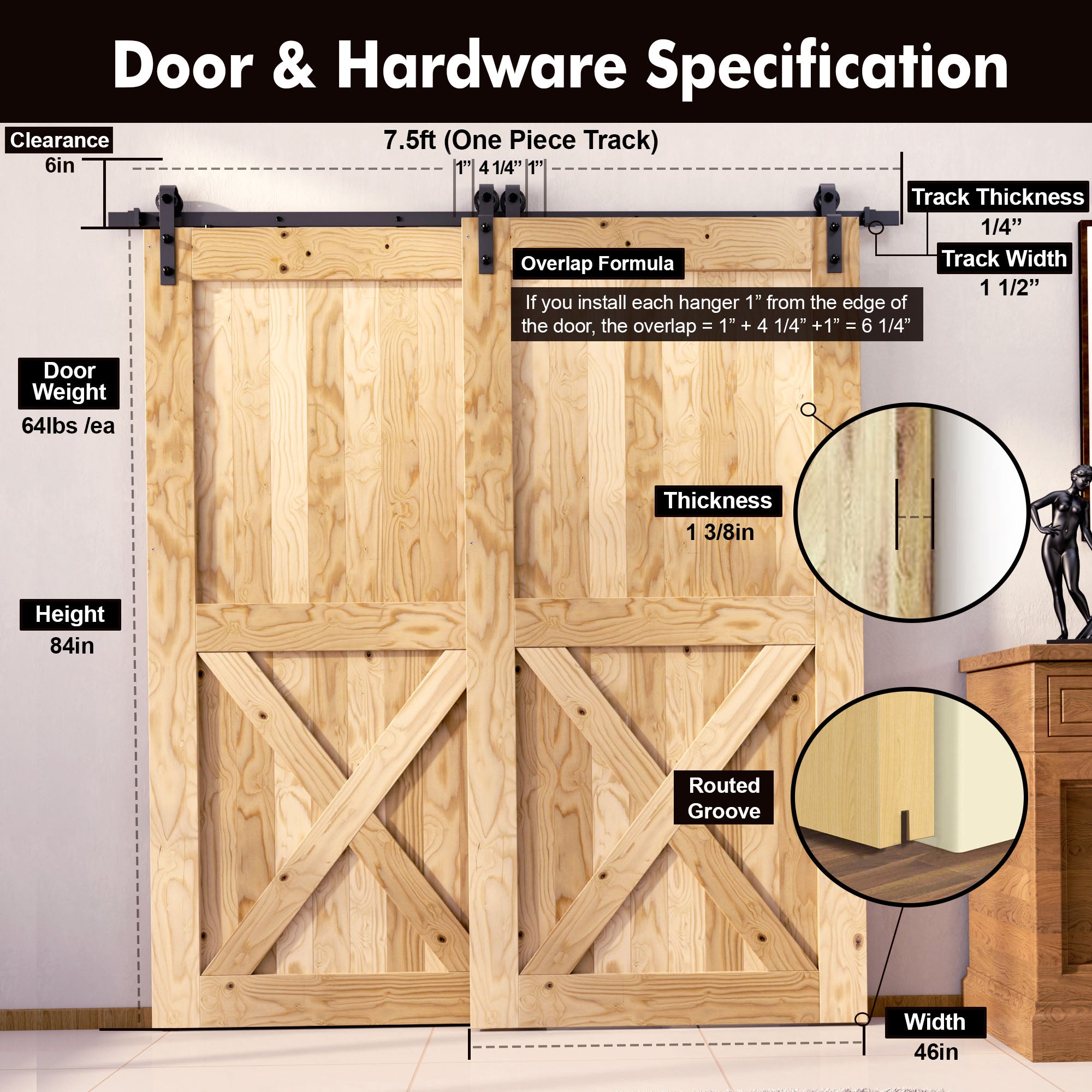

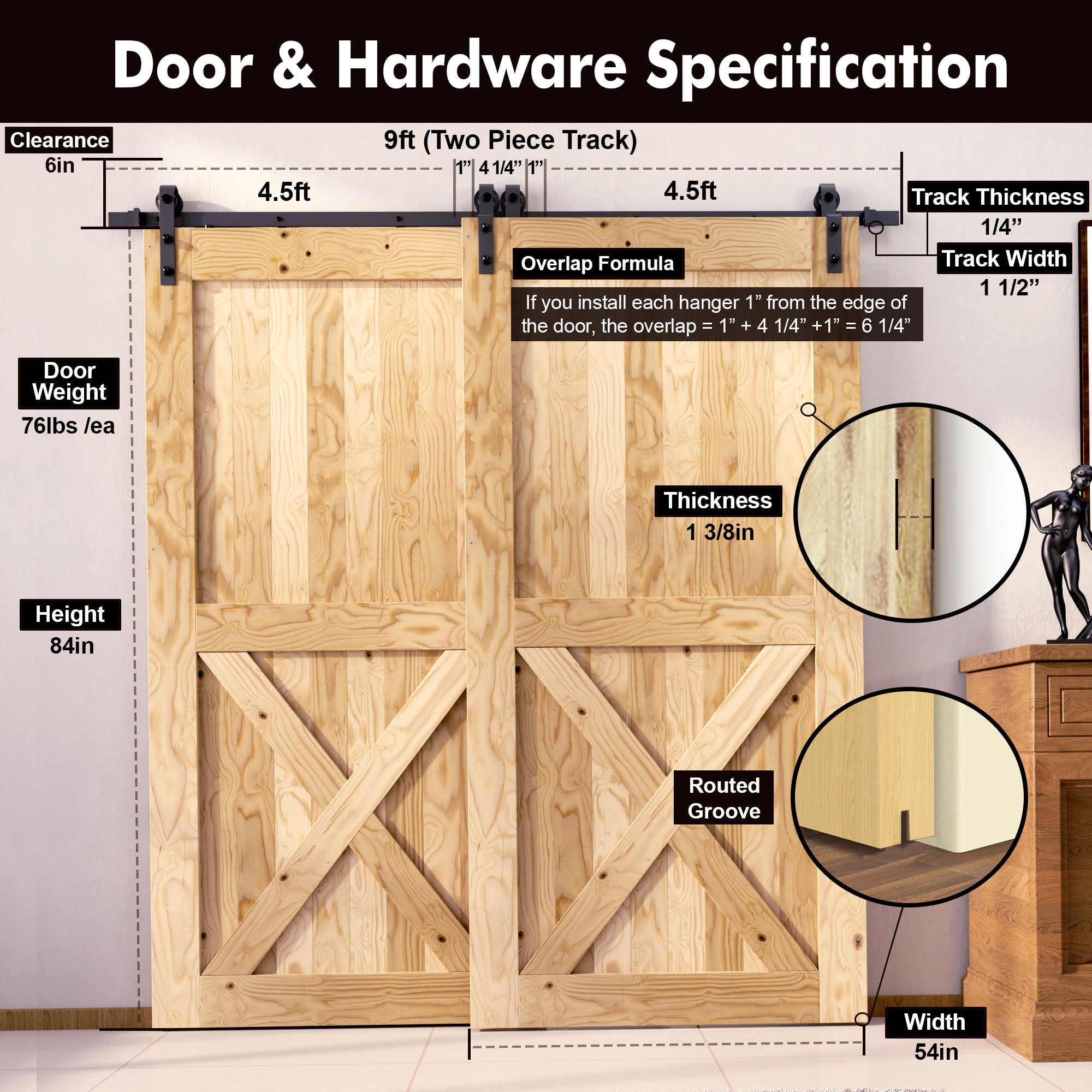

- The single track bypass system will have 6 1/4" overlap.
- The formula for the opening and door size : door width*2 - 6 1/4" = opening
PARTS INCLUDED
THINGS TO KNOW
Here are some things to know before making your final decision to purchase.
Header Board

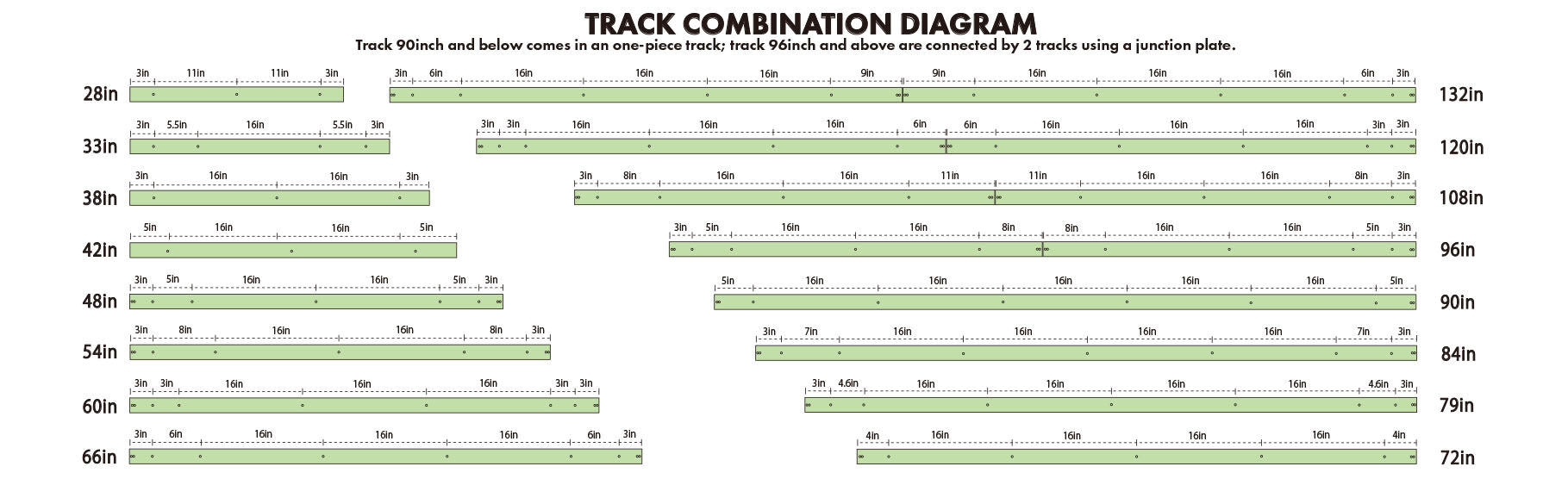

Our tracks are American Standard 16" Spacing. The longest one-piece track is 7.5ft. For tracks 8ft and above, multiple tracks are used. A Header Board is recommended for tracks 8ft and above for uneven hole spacing where tracks combine. It is also useful if your opening has trim, as it allows the track system to extend further off the wall to prevent the door from hitting the trim. Spacer extenders maybe used for trim existence too.
Door Thickness
The hardware is compatible with door thickness from 1 3/8" to 1 3/4". If you have a door that falls out of this range, you can purchase shorter or longer hex bolts with the part# provided below. You will see more details about how to choose the correct length of the hex bolts for your doors on the description of the hex bolt product page.
Door Weight
All our hardware kits included the standard black nylon wheels, these wheels provide noise reduction when rolling. Each of our systems can withstand 220lbs. The metal wheels for heavier doors are recommended if the total weight of the door(s) on the system is 150lbs and above. The metal wheels are sold separately on Amazon with part# provided below.
