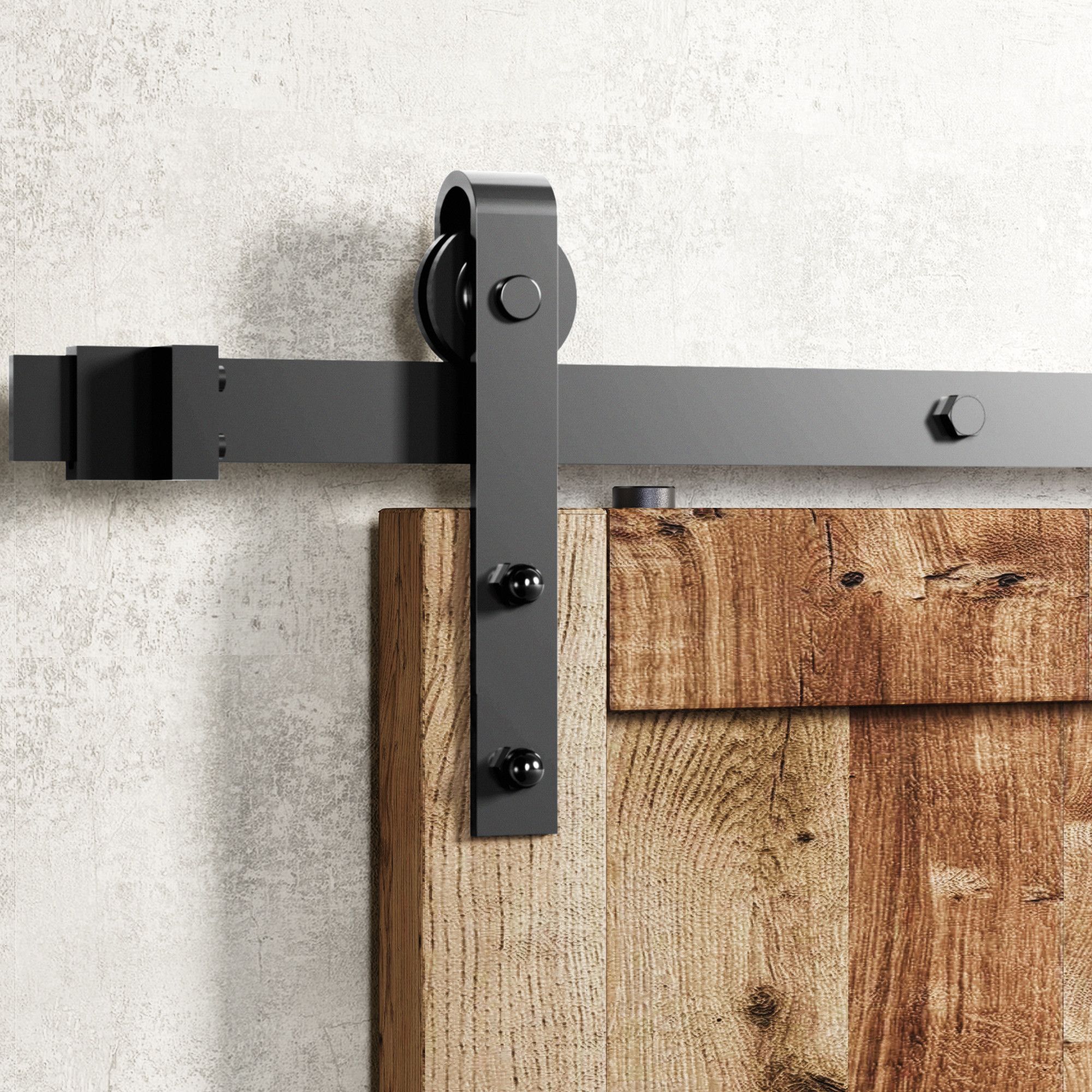

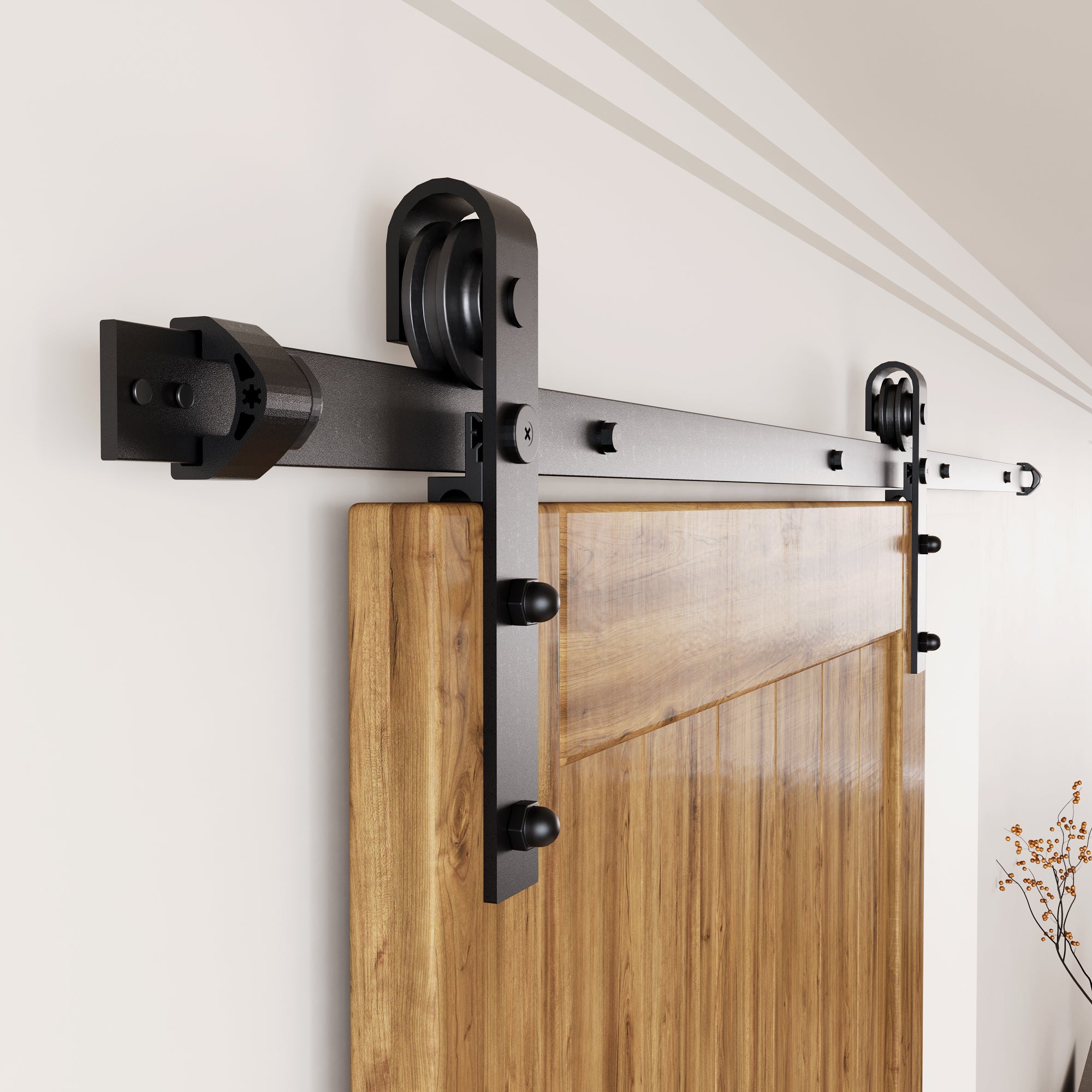

single track non-bypass hardware kit
homacer single track non-bypass sliding barn door hardware kit

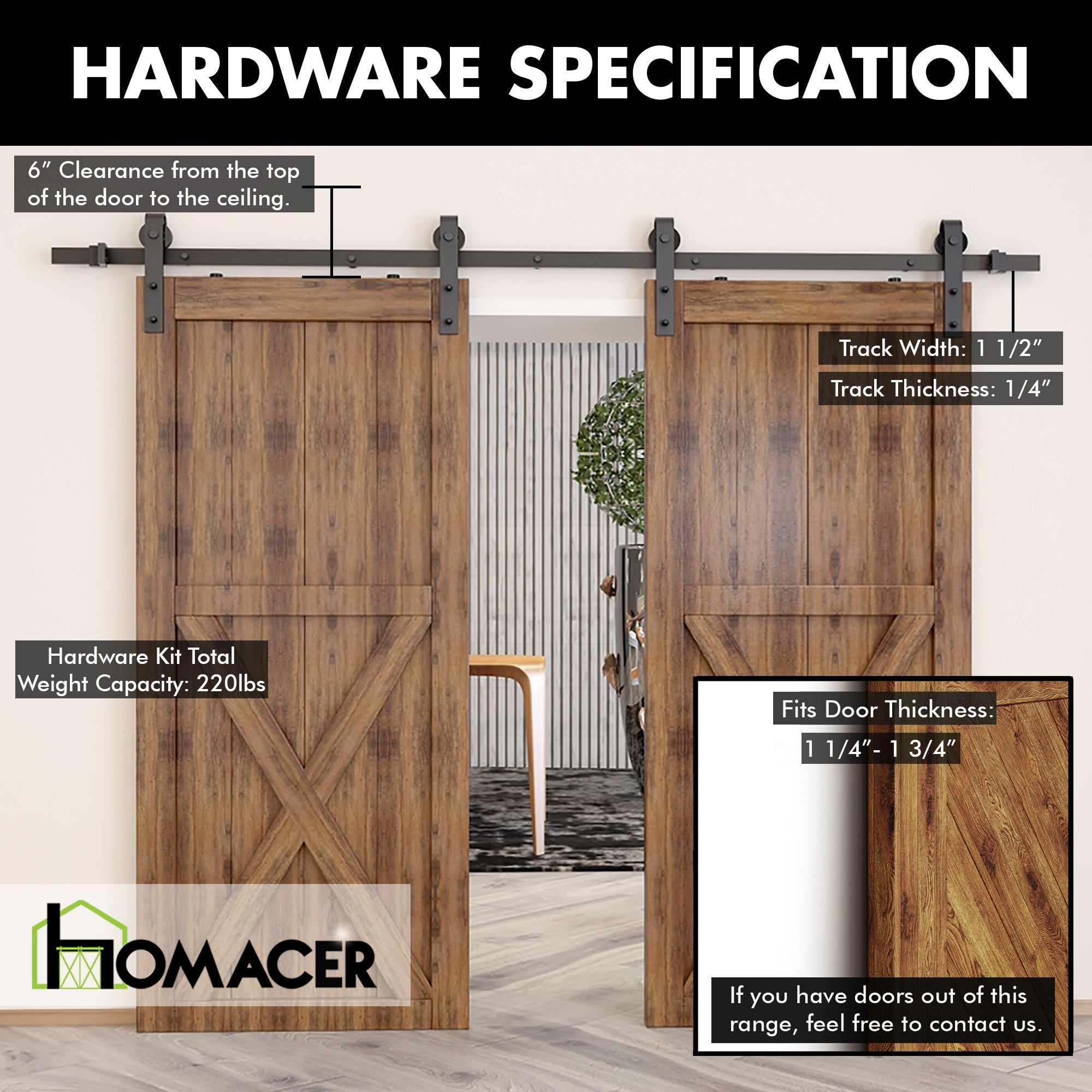

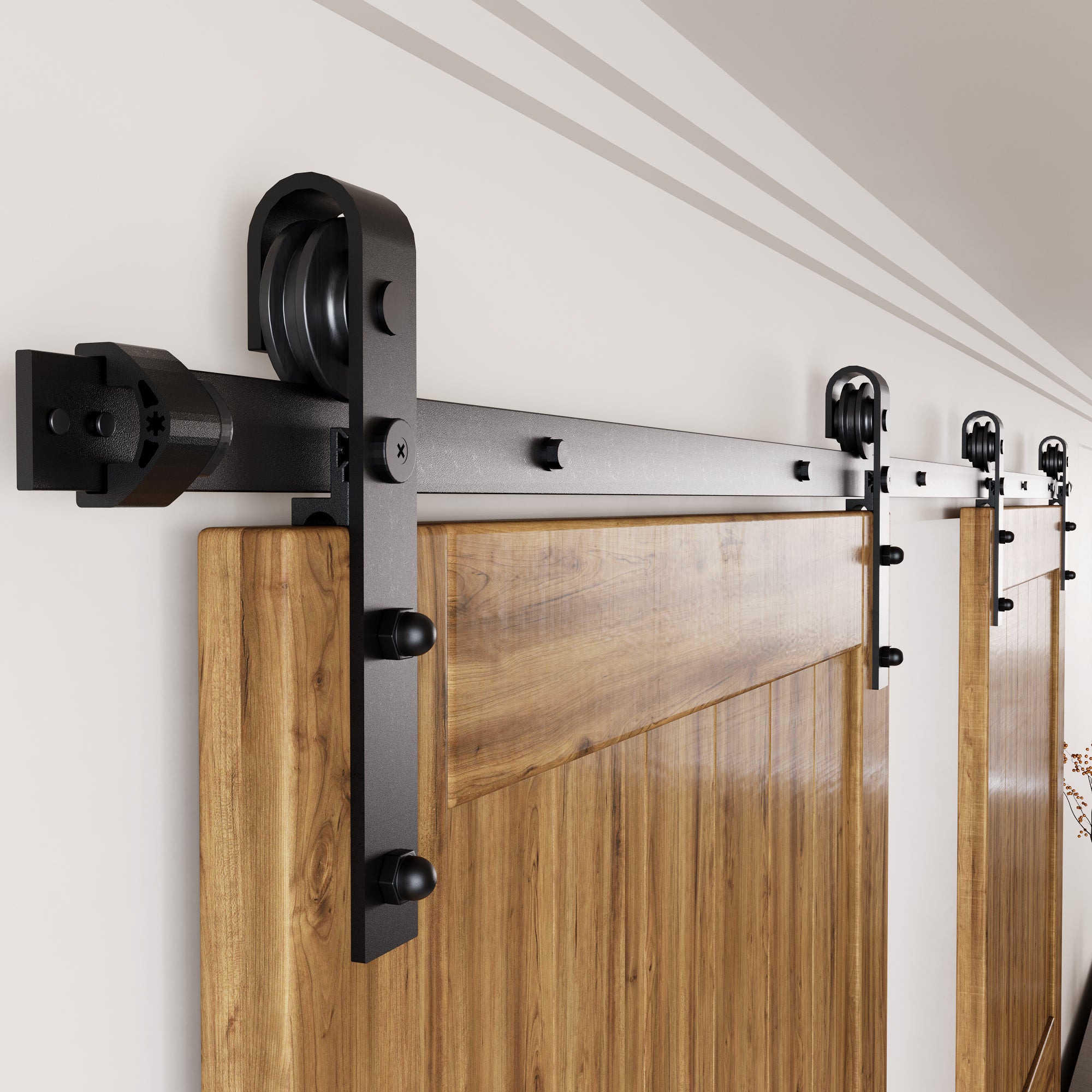

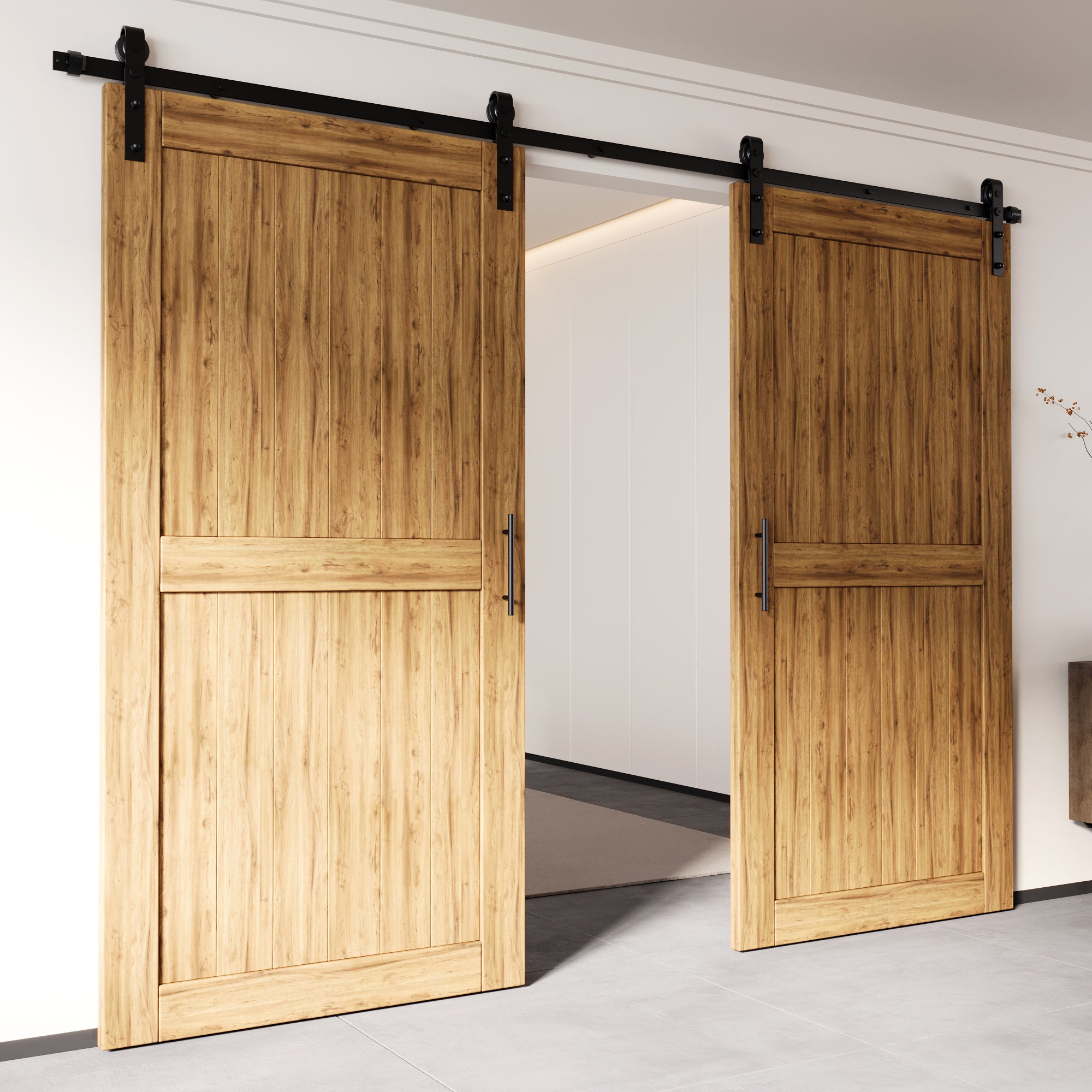

single track non-bypass barn door hardware two door kit

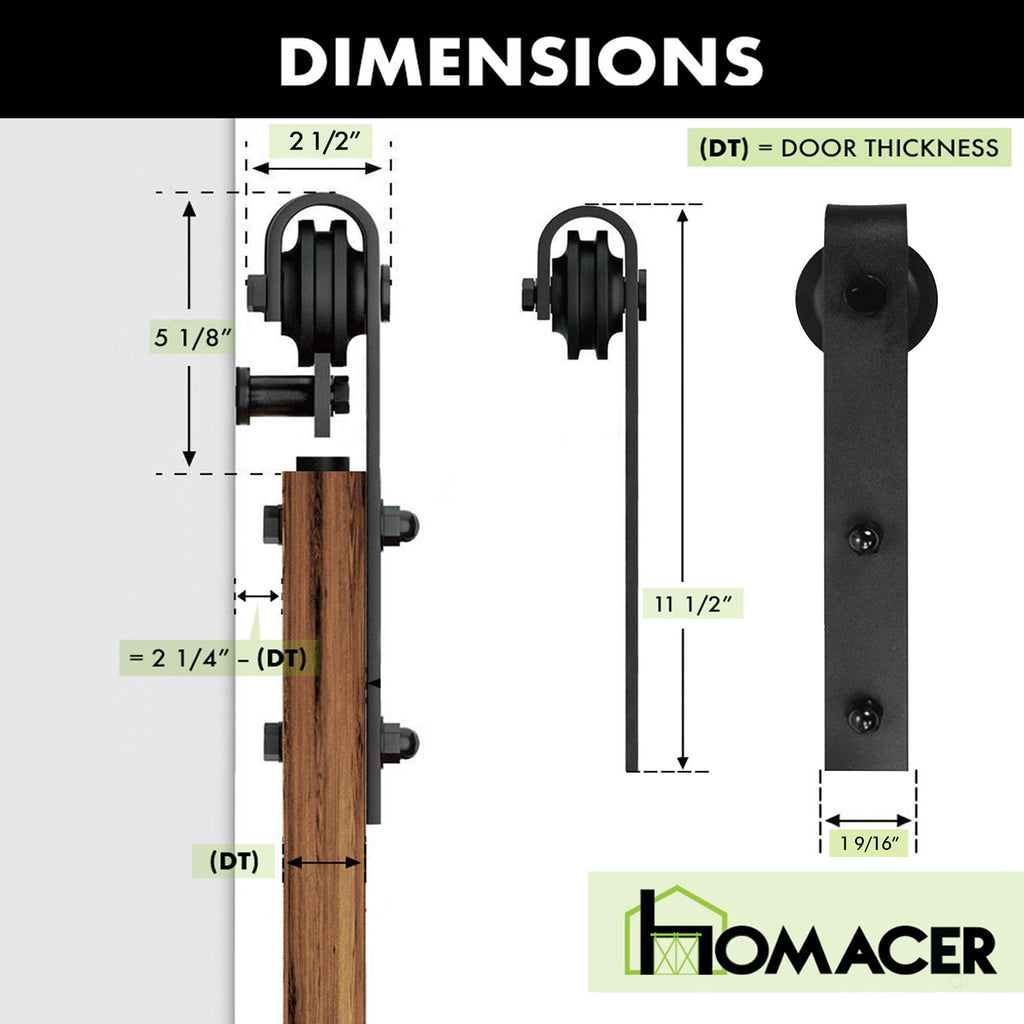

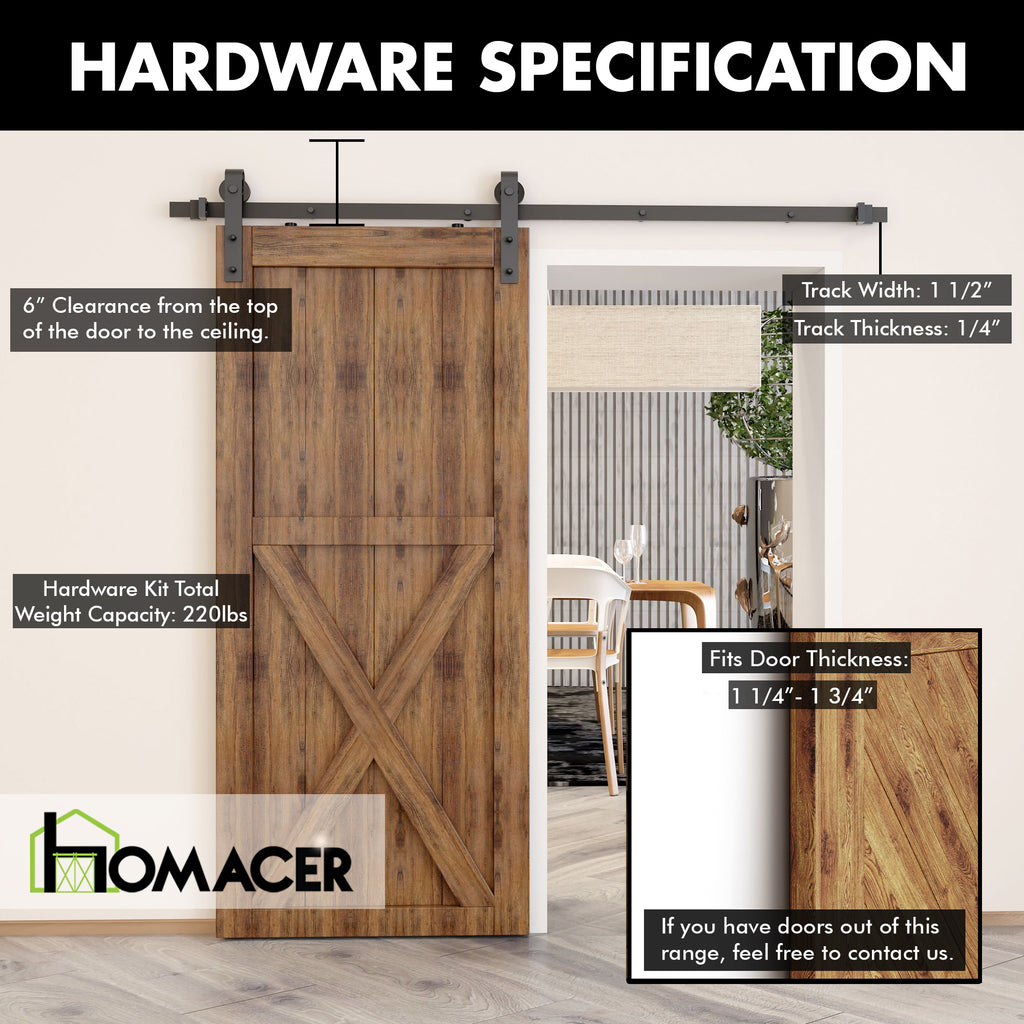

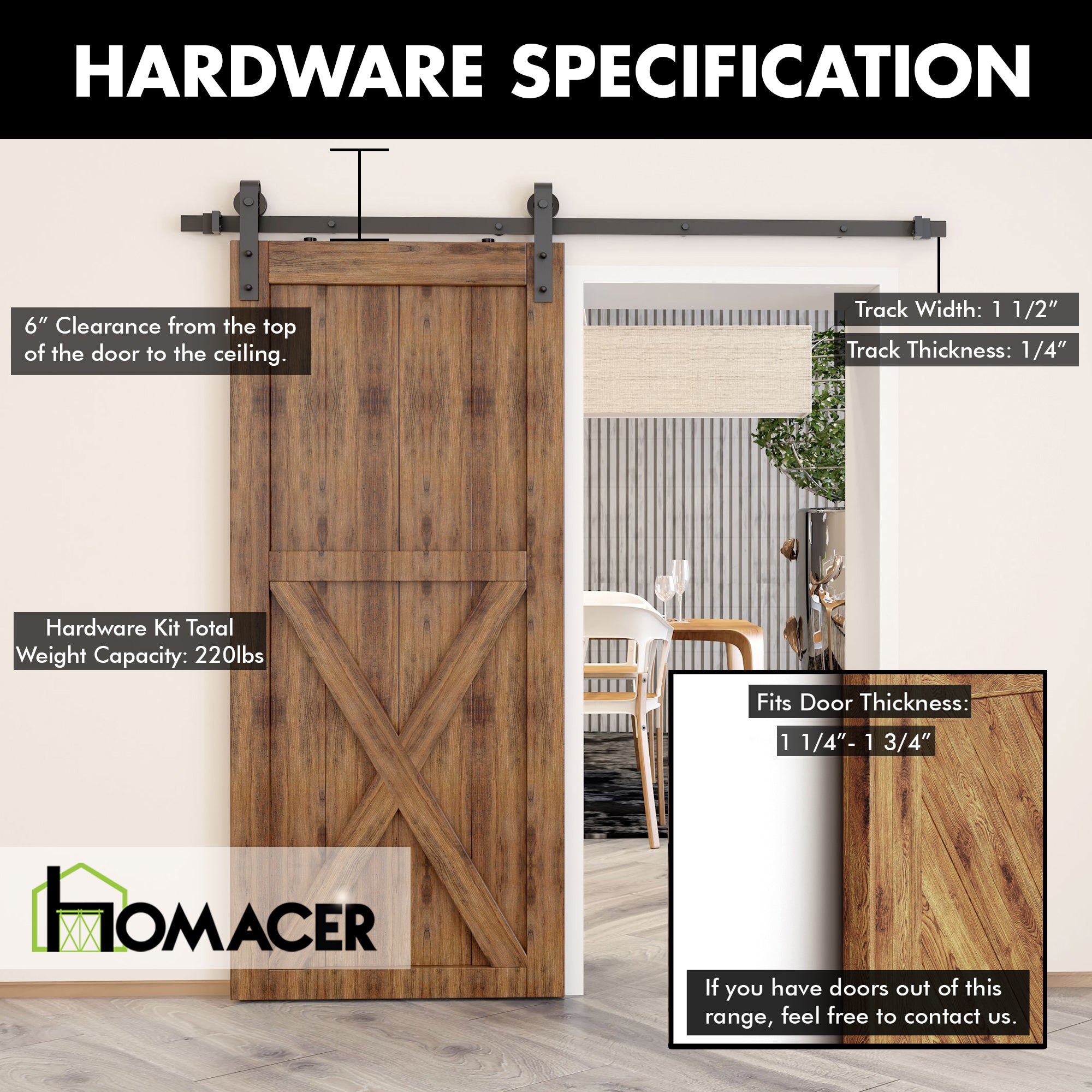

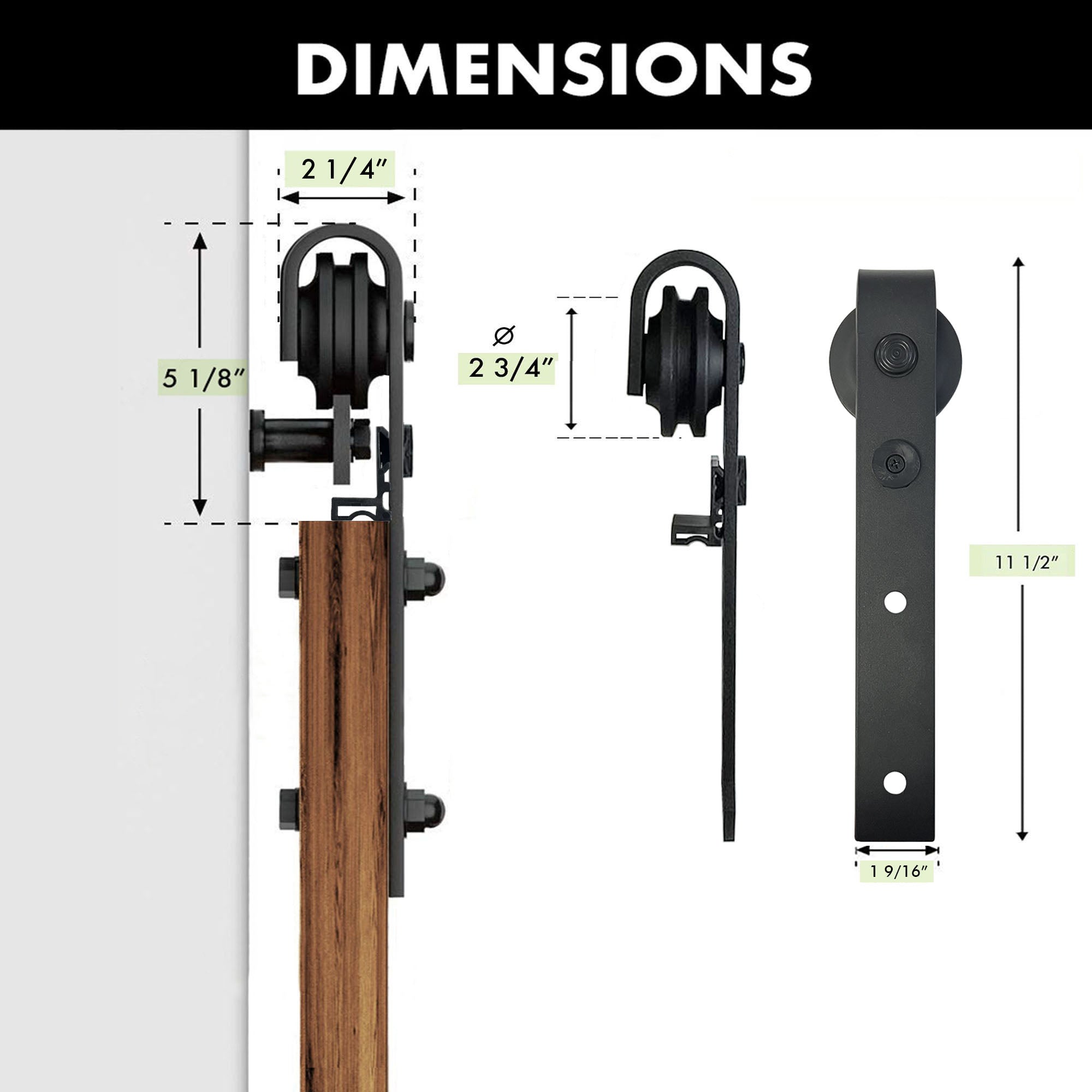

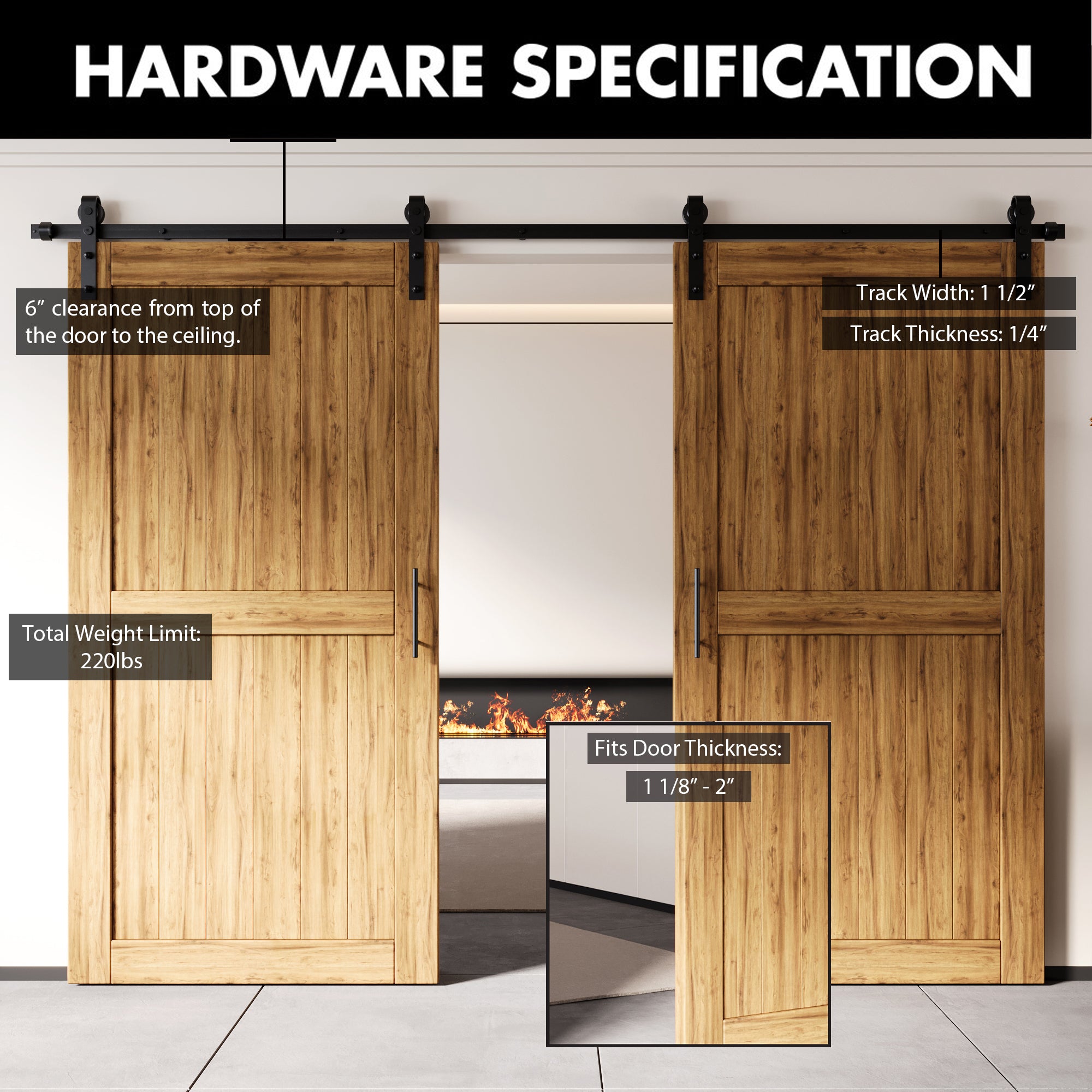

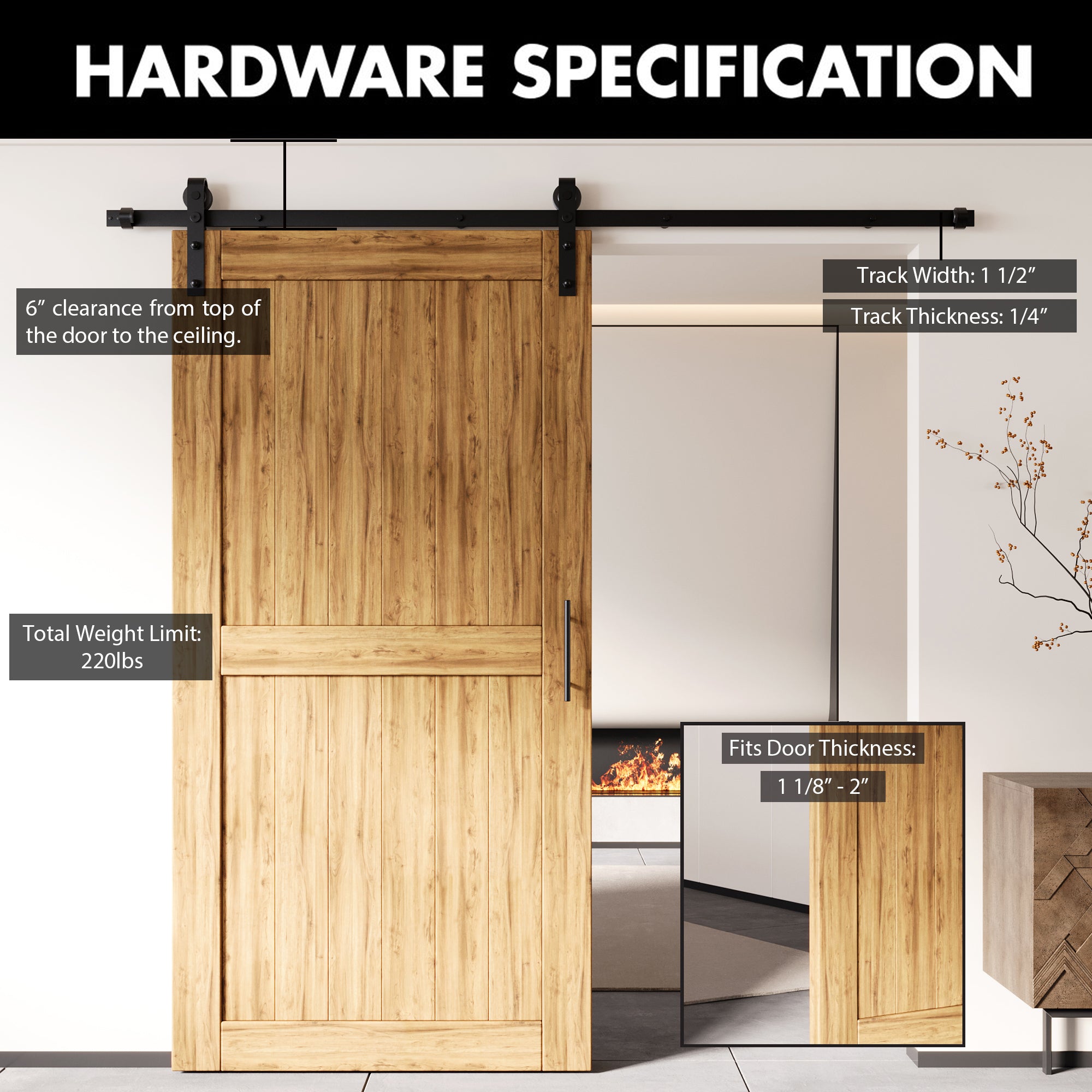

sliding barn door hardware specification, dimension
rolling barn door hardware non-bypass single track hardware dimension

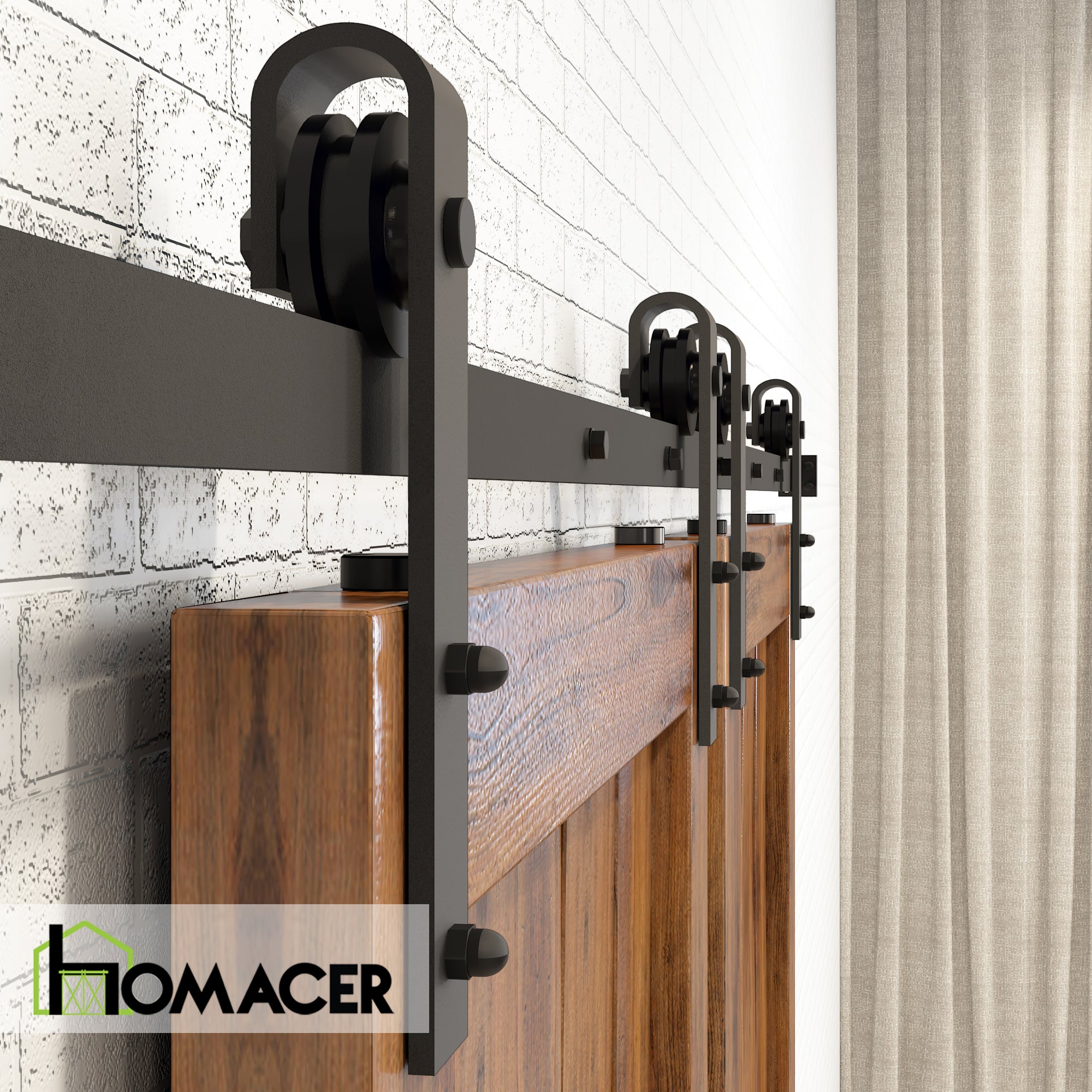

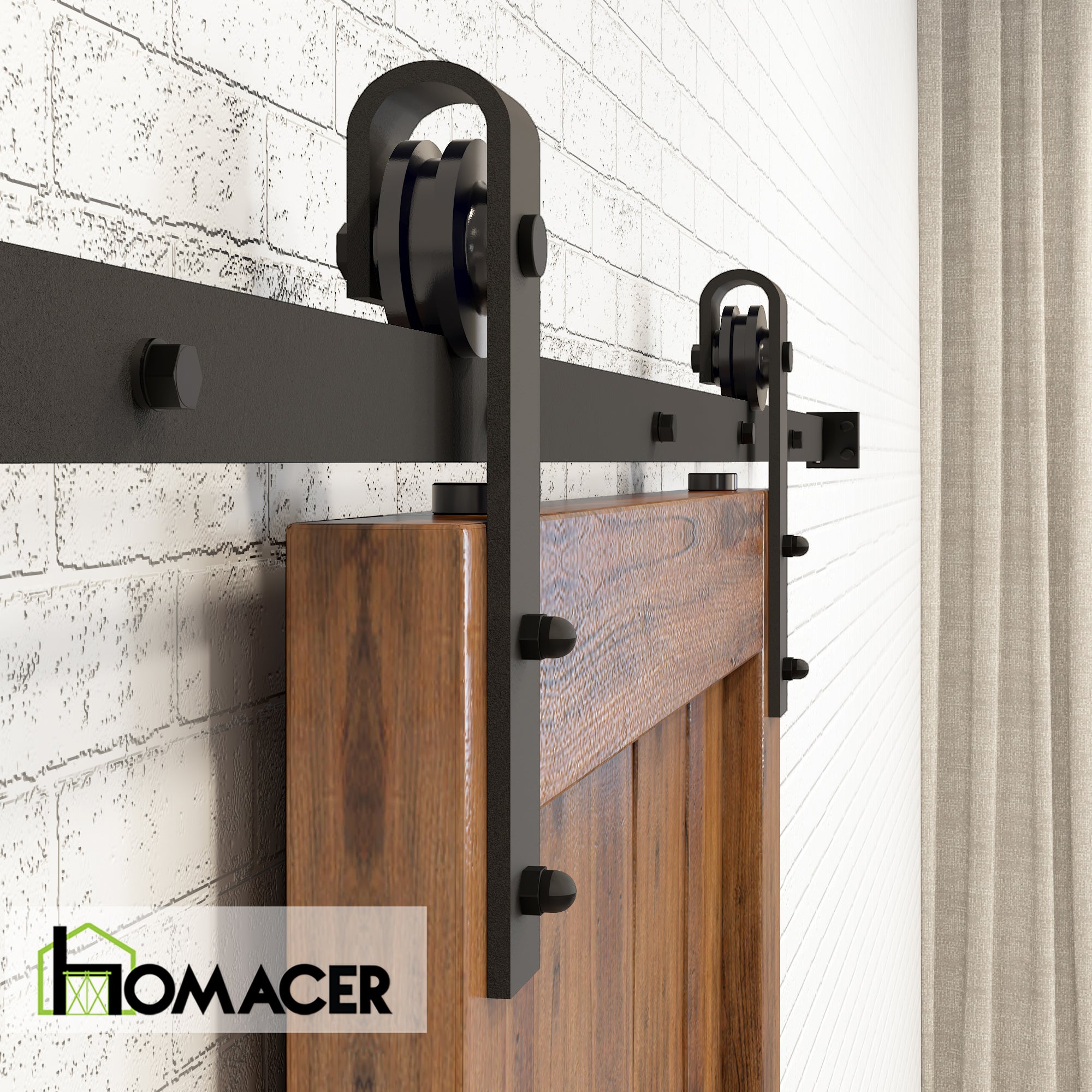

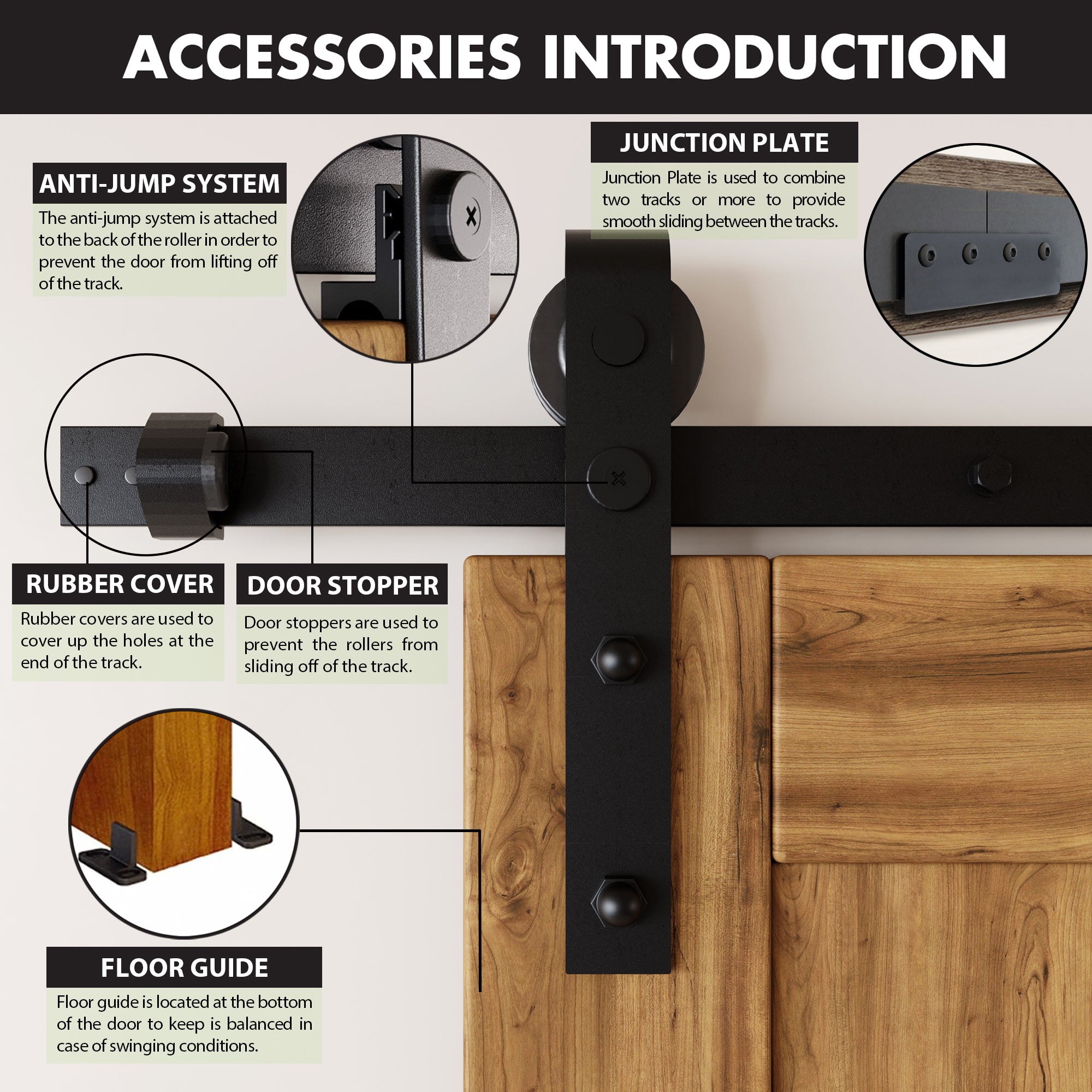

sliding barn door hardware single track non-bypass roller up close, accessories introduction
single track non-bypass roller set
Non-Bypass Sliding Barn Door Hardware Kit - Classic Design Roller
Non-Bypass Sliding Barn Door Hardware Kit - Classic Design Roller
Non-Bypass Sliding Barn Door Hardware Kit - Classic Design Roller
Non-Bypass Sliding Barn Door Hardware Kit - Classic Design Roller
Non-Bypass Sliding Barn Door Hardware Kit - Classic Design Roller
Non-Bypass Sliding Barn Door Hardware Kit - Classic Design Roller
Homacer

Non-Bypass Sliding Barn Door Hardware Kit - Classic Design Roller

Sale price$69.004.8
Track Length: 4ft
Hardware System: One Door Kit
  • QUALITY IS 100% UNDER CONTROL. We picked the most premium carbon steel to make the hardware heavy-duty and sturdier than the competition. The black powdered coating makes the paint stays forever and will not be scratched off. The wheels of the roller are made of high-quality nylon which ensures minimal noise when it glides on the track. Each hardware kit can hold a total door(s) weight up to 220 lbs.
  • FULLY OPTIMIZED CONNECTING AND SPACING. I understand how frustrated it was when you opened the box and found out multiple smaller tracks that were hard to line up and connect. Even worse when the spacing was not exactly 16 inches. We’ve got them all figured out! The spacing is now exactly 16 inches. Track 7.5ft and under is only one piece track. Track 8ft and above are connected by two tracks using a junction plate, thus, the spacing between the middle two holes may not be 16 inches.
  • BARN DOOR HARDWARE INSTALLATION MADE EASY. You hate to see vague installation manual that is just one piece of paper with hard to read measurements, badly drawing pictures, and barely any word instructions? So am I! Fortunately, in our installation manual, you will see the step by step instructions with USA standard fractional inch measurements, self-explanatory pictures, and concise word instructions. You are going to have a pleasant time while installing a sliding door at your home.
  • MONEY AND TIME SAVER FOR YOUR PROJECT. Tired of spending a hell lot of money and time when searching for the proper size and type of hardware at the big box store? Not the case here! We provide track sizes from 4ft to 20ft at a reasonable price. We also improved our packaging to make sure you will get everything you need in a timely manner! No more hassle to go back and forth for the missing or replacement parts.
  • YOU ARE FULLY COVERED BY OUR PROFESSIONAL CUSTOMER SERVICE TEAM. As a company in the US, our professional customer service team are here to ensure your satisfaction with our products and quick response to any questions. If you are still not happy with the order, you can return it to us and get all your money back at all times!

Product Features

  • Package includes all the hardware kit you need to install a sliding barn door. Except for doors.
  • The standard door thickness for our hardware is from 1 3/8'' to 1 3/4''. If your door thickness is not within that range, please go to our second tab called "Customization Services" for more detailed instructions on how to customize it.
  • The spacing between each hole is American Standard 16''. Tracks 7.5ft and under are one single track instead of being connected by multiple shorter tracks. Tracks 8ft to 16ft will be connected by two tracks. Tracks 18ft and 20ft will be connected by three tracks. Therefore, the spacing between the holes in the connecting section may not be 16''.
  • The minimum clearance (from top of the door to the ceiling) you need to install this barn door hardware is 5''.

 Hardware Installation Video


Floor Guide Installation Video

PARTS INCLUDED

Roller Set Box

Box contains: Rollers, Hex Bolts, Floor Guides, Anti-Jump Pads, and Door Stoppers

Track & Junction Plate

Track(s) & Junction Plate(s) quantity depends on the size ordered.

Bracket Set

Brackets are provided to connect the two tracks together.

THINGS TO KNOW

Here are some things to know before making your final decision to purchase.

Header Board

Our tracks are American Standard 16" Spacing. The longest one-piece track is 7.5ft. For tracks 8ft and above, multiple tracks are used. A Header Board is recommended for tracks 8ft and above for uneven hole spacing where tracks combine. It is also useful if your opening has trim, as it allows the track system to extend further off the wall to prevent the door from hitting the trim. Spacer extenders maybe used for trim existence too.

Door Thickness

The hardware is compatible with door thickness from 1 3/8" to 1 3/4". If you have a door that falls out of this range, you can purchase shorter or longer hex bolts with the part# provided below. You will see more details about how to choose the correct length of the hex bolts for your doors on the description of the hex bolt product page.

Door Weight

All our hardware kits included the standard black nylon wheels, these wheels provide noise reduction when rolling. Each of our systems can withstand 220lbs. The metal wheels for heavier doors are recommended if the total weight of the door(s) on the system is 150lbs and above. The metal wheels are sold separately on Amazon with part# provided below.
